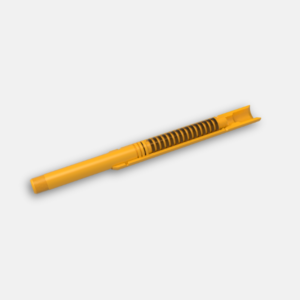

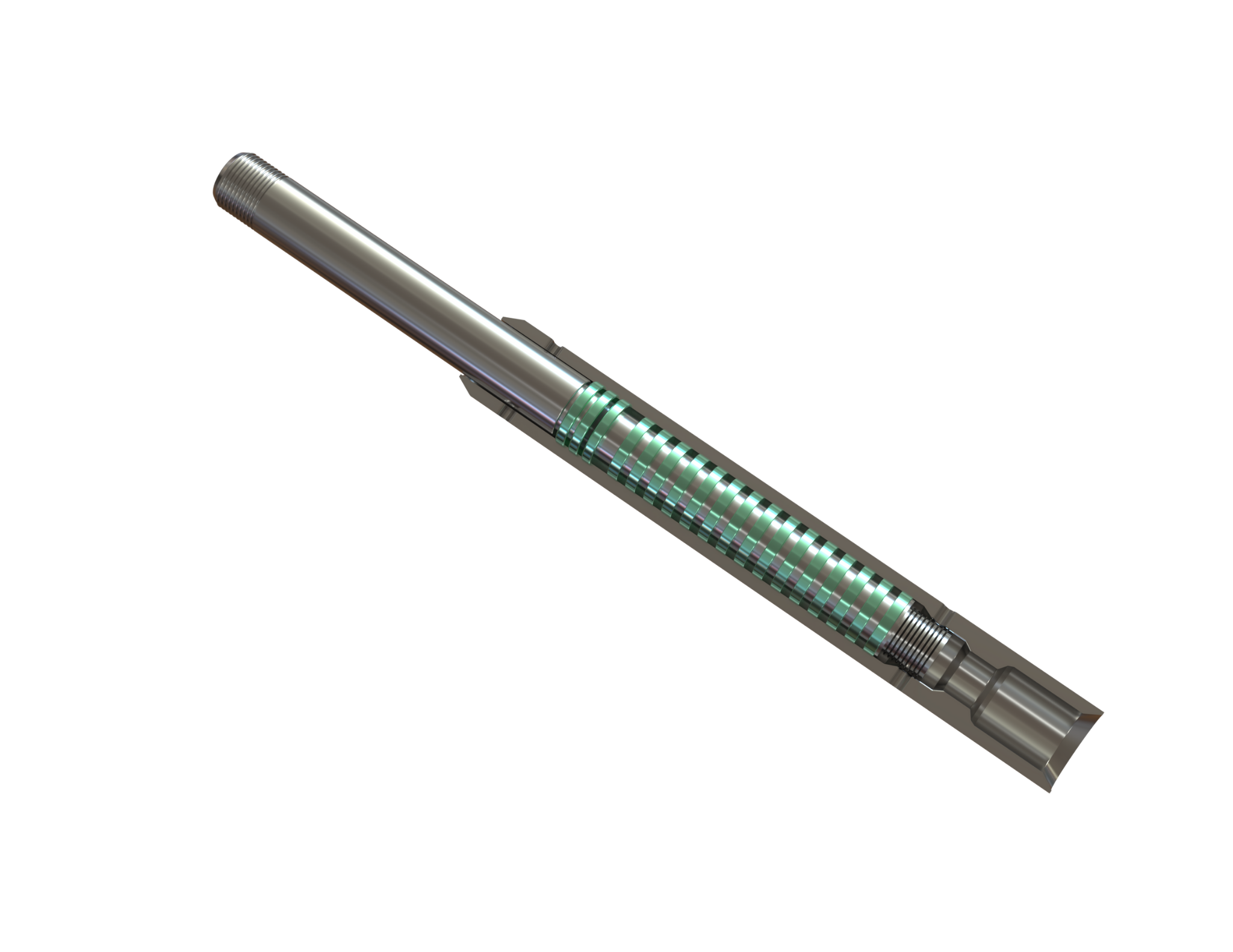

The Vertical Shock Absorber is designed to run between the Packer and TCP guns. The purpose of the VSA is to protect delicate electronic gauges and mechanical tools such as packers from the severe shock associated with the detonation of the TCP guns.
| Item | Description | |
|---|---|---|
| Part No. | RCVSA01288000 | |
| O.D. MAX | Φ102mm | Φ4in |
| Length | 1140mm | 44.88in |
| Connection Thread Type | 2 7/8 UP TBG（B×P） | |
| Max. Differential Pressure | 60MPa | 8700psi |
| Max. Temperature | 200℃ | |
| Shipping Weight | 645KN |
