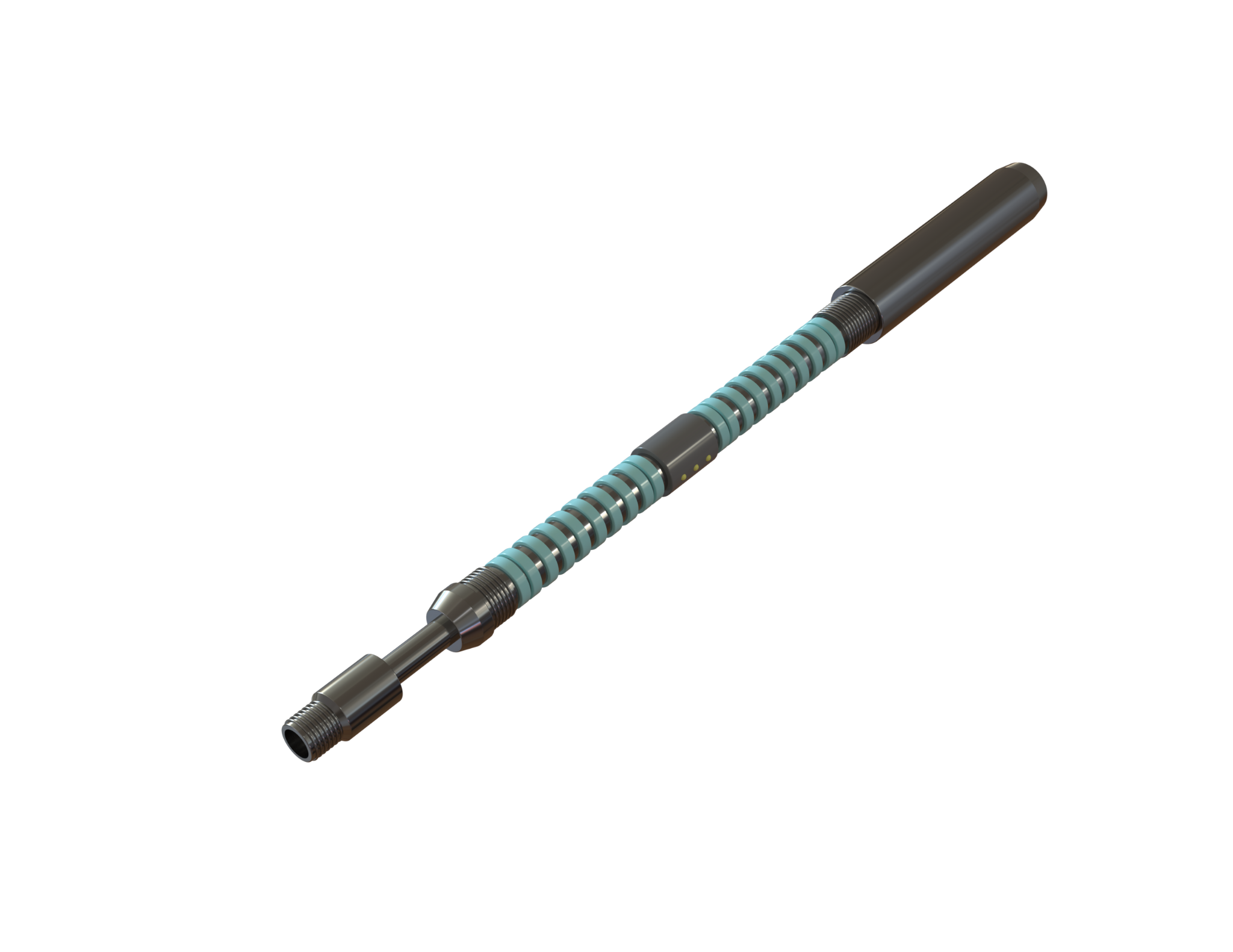

Bidirectional Vertical Shock Absorber
Description:
Designed for deployment between the packer and TCP gun assembly, this component safeguards sensitive electronic gauges and mechanical tools from the intense shock generated during TCP gun detonation.
Features:
Shields electronic pressure gauges, mechanical pressure gauges, and packers from detonation-related shock.
Maintains a rigid structural state until the moment of gun firing.
Technical Information
| Item | Description | |
|---|---|---|
| Part No. | RMBVSA27893000 | |
| O.D. MAX | Φ93mm | Φ3.66in |
| Length | 1708mm | 67.24in |
| Compression Distance | 160mm | 6.3in |
| Connection Thread Type | 2 7/8 UP TBG (BxP) | |
| Max Differential Pressure | 60MPa | 8700psi |
| Max Permissible Weight | 1000KN | |
