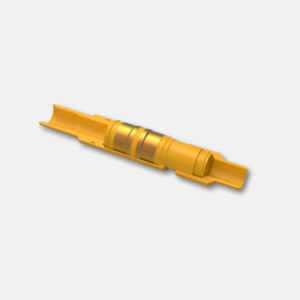

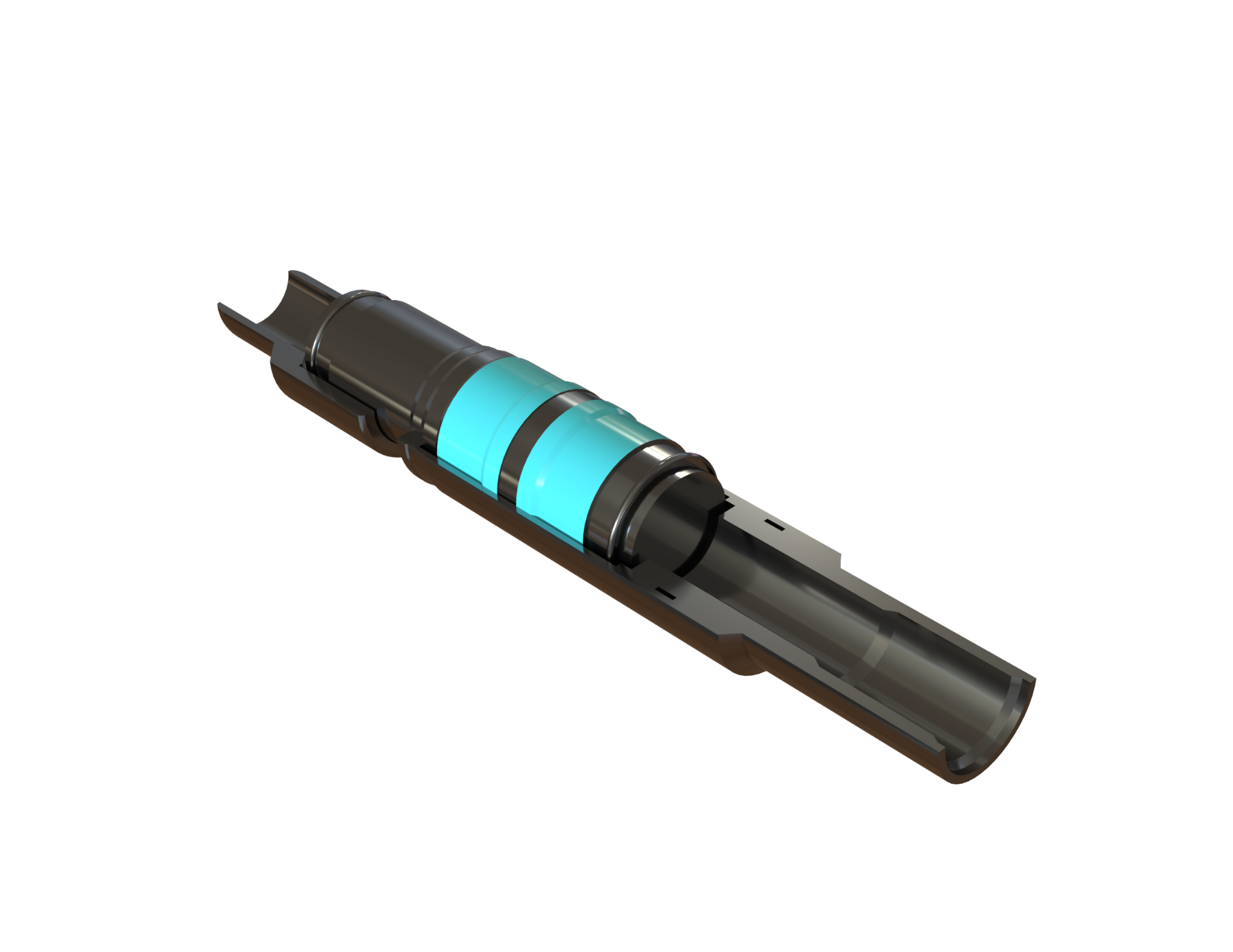

Tubing Swivel Sub

(0)

Description:

Tubing Swivel Sub is designed to allow the tubing above and below a TCP gun assembly to rotate independently. When run in conjunction with eccentric weight bars or orienting fins, above or between TCP gun systems, the gun assembly can rotate freely to orient for perforating in the desired direction of a deviated or horizontal well.

Features

  • High quality journal bearings;
  • Compact design results in small OD and large bore;
  • Ensures free rotation under tension, compression and side loading;
  • Design allows for unrestricted flow inside tubing;
  • Cost effective and easy maintenance.

Technical Parameters:

ItemDescription
TYPE2-3/8in(60.3mm)2-7/8in（73.0mm）
Product NumberRCTSS01238000RCTSS01288000
O.D. max3.386in(86mm)3.669in(93.2mm)
I.D. max1.95in(50mm)2.4in(61mm)
Overall Length19.8in(503mm)20.67in(525mm)
Max Temp400°F(204°C)
Connection2-3/8 EU (B×P)2-7/8 EU (B×P)
Tensile115000lb（512KN）125000lb（556KN）
Max Pressure14500PSI(100MPa)10000PSI(70MPa)
