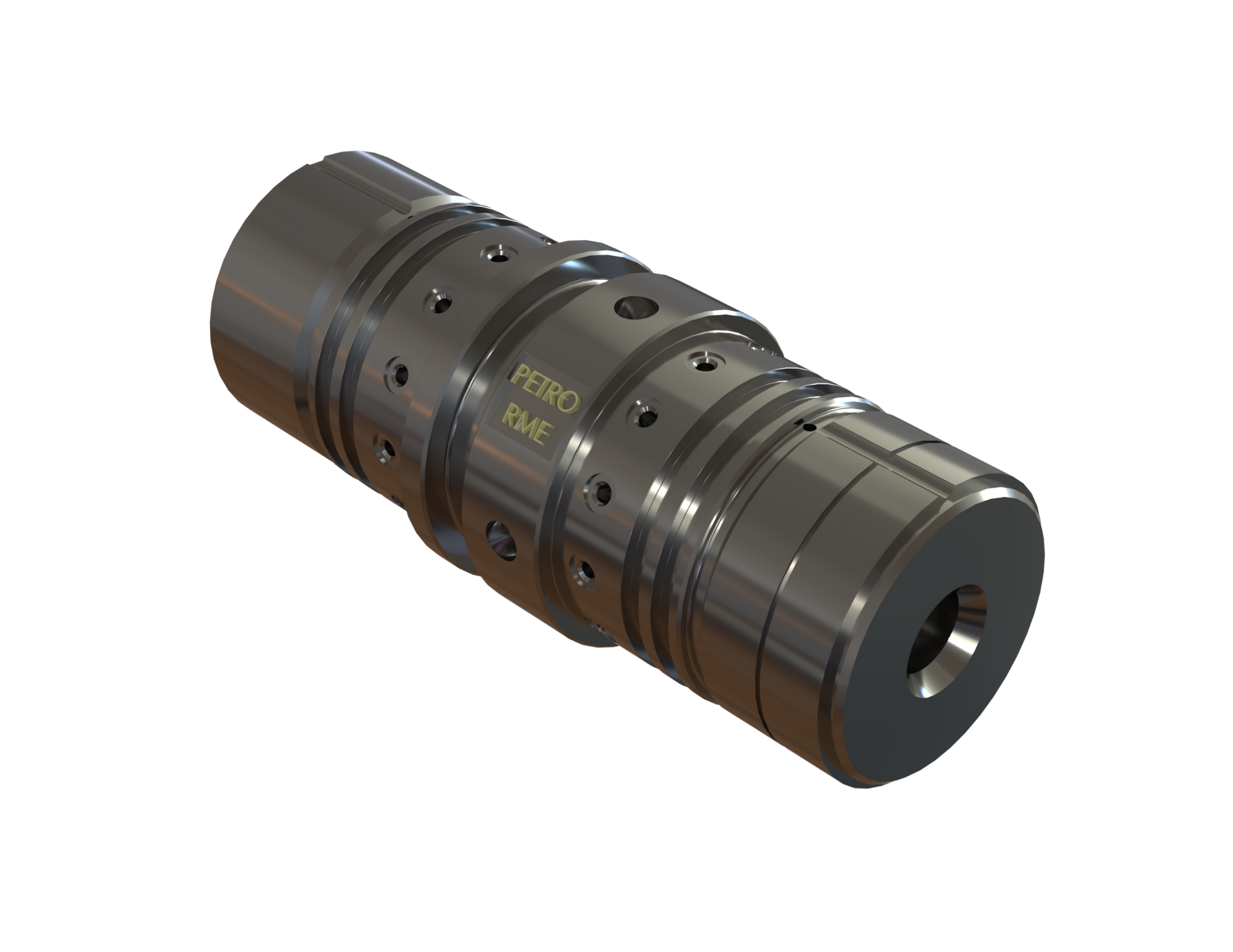

Thread Gun Tandem Sub TY.D

Name: Thread Gun Tandem Sub TY.D
Brand: RMEOIL
Availability: InStock

Description

Tandem sub is using for connecting two perforating guns.
B2- Series tandem sub is made of 4140 alloy structural steel with good mechanical properties

Technical Details

RME Part Number	Sub O.D.	Thread Type	Pressure Rating	Max.Weight
TMS-51-D-2	2”	1 11/16-8 STUB ACME-2G	25000 psi (172Mpa)	3.3lb[1.5kg]
TMS-73-D-2	2 7/8”	2 3/8”-6Acme-2G		9.9lb[4.5kg]
TMS-80-D-2	3 1/8”	2 3/4”-6Acme-2G		14.3lb[6.5kg]
TMS-86-D-2	3 3/8”	2 13/16”-6Acme-2G		17.6lb[8kg]
TMS-114-D-2	4 1/2”	3 15/16”-6Acme-2G		30.9lb[14kg]
TMS-127-D-2	5”	4 1/2”-6 Acme-2G		39.7lb[18KG]
TMS-178-D-2	7”	6 1/4”-6Acme-2G		77.2lb[35kg]

**All weights are theoretical

Selection Chart

Sub O.D.	0-ring Size / upper
2”	AS-221 3.53xφ36.09
2 718"	AS-227 3.53xφ53.57
3 1/8"	AS-230 3.53xφ63.10
3 3/8"	AS-231 3.53xφ66.30
4 1/2”	AS-342 5.33xφ91.45
7”	AS-361 5.33xφ151.75

Attention:

Product condition must be monitored, inspected and maintained regularly to ensure proper service in accordance with RME guideline. Failure to do so may result in personal injury and/ or property damage. For questions please contact your RME representative.
