Swivel Joint

(0)

Description:

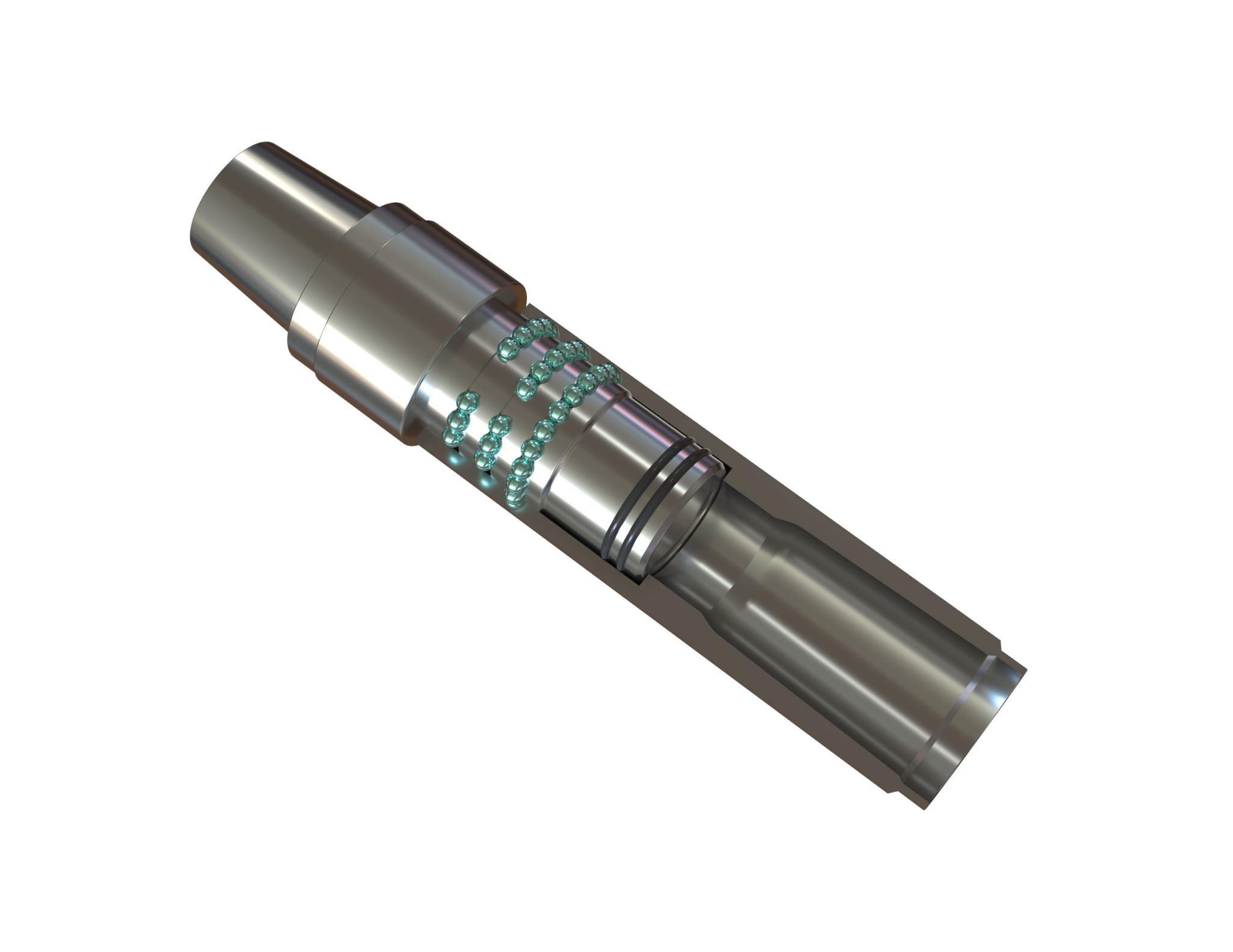

Swivel Joint is used in CT operation, the upper sub and the bottom sub of the product is connected by steel balls, so the upper sub can rotate around the bottom sub in order to release the torque of CT

Features

  • Big drift diameter for discharge and dropping ball operation;
  • Release thetorquequickly;
  • Sample、Reliable、Easy to connection with coiled tubing.

Technical Parameters:

ItemDescription
Part NumberRCSJX01054000
OD.Φ54mm
Full-boreΦ25.4mm
Overall Length263mm
Connect Thread1.5AMMT(B×P)
Max Pressure70MPa
Max Tensile Strength350KN
Max Temp.200 ℃(392 °F)
