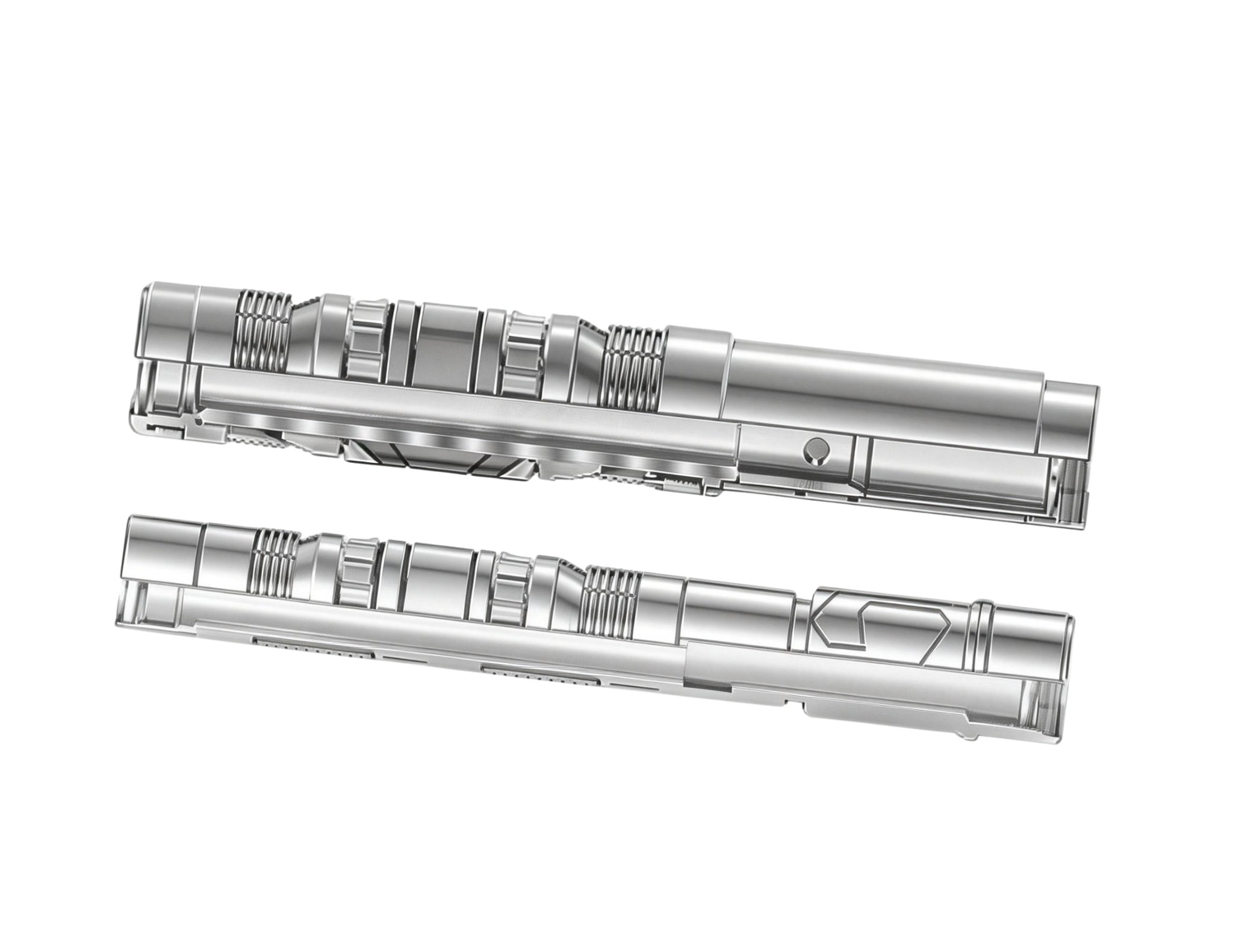

SPP-XC PERMANENT PRODUCTION PACKERS
Description
The SPP-XC series of permanent production packers feature an oversized inner diameter across their bore, making them an ideal selection for parallel tubing string deployments and comparable well completion scenarios. These wireline-set, millable packers are compatible with casing sizes ranging from 4 1/2” to 9 5/8”.
Features
• Ensures reliable setting in casing of any hardness (including premium-grade variants) and utilizes ratchet lock rings to lock in dynamic setting force for stable anchoring
• Boasts a three-component packing element paired with rocker-action metal backup rings, which work in tandem to deliver a high-integrity zonal isolation seal
• Comes with a threaded pin-down connection for straightforward accessory installation and can be deployed using GO, Baker, or Gearhart wireline setting tools
Technical Information
| Part number | Casing OD (in) | Casin Wt (lbs/ft) | Setting range Min (in) | Setting range Max (in) | Tool OD (in) | Sealbore (in) | Release force (lbs) |
|---|---|---|---|---|---|---|---|
| RMPPP00037800 | 4 1/2 | 9.5-13.5 | 3.92 | 4.12 4 | 3.781 | 2.5 | 28000 |
| RMPPP00039700 | 5 | 15-21 | 4.125 | 4.43 6 | 3.968 | ||
| RMPPP00042500 | 5 | 11.5-13 | 4.437 | 4.67 | 4.25 | ||
| 5 1/2 | 23-26 | ||||||
| RMPPP00044400 | 5 1/2 | 20-23 | 4.625 | 4.81 1 | 4.437 | 3 | 38000 |
| RMPPP00045600 | 14-17 | 4.812 | 5.01 2 | 4.562 | |||
| RMPPP00047500 | 13-14 | 4.976 | 5.12 4 | 4.75 | |||
| RMPPP00056900 | 6 5/8 | 20-24 | 6.875 | 6.09 4 | 5.687 | 4 | 48000 |
| 7 | 32-38 | ||||||
| RMPPP00058800 | 6 5/8 | 17-20 | 6.095 | 6.27 6 | 5.875 | ||
| 7 | 26-29 | ||||||
| RMPPP00060000 | 7 | 20-23 | 6.277 | 6.45 6 | 6 | ||
| RMPPP00062500 | 7 | 17-20 | 6.456 | 6.76 5 | 6.25 | ||
| 7 5/8 | 33.7-39 | ||||||
| RMPPP00066300 | 7 5/8 | 20-29 | 6.875 | 7.12 5 | 6.625 | ||
| RMPPP00081300 | 9 5/8 | 29.3-53.5 | 8.535 | 9.06 3 | 8.125 | 4.75 | 55000 |
