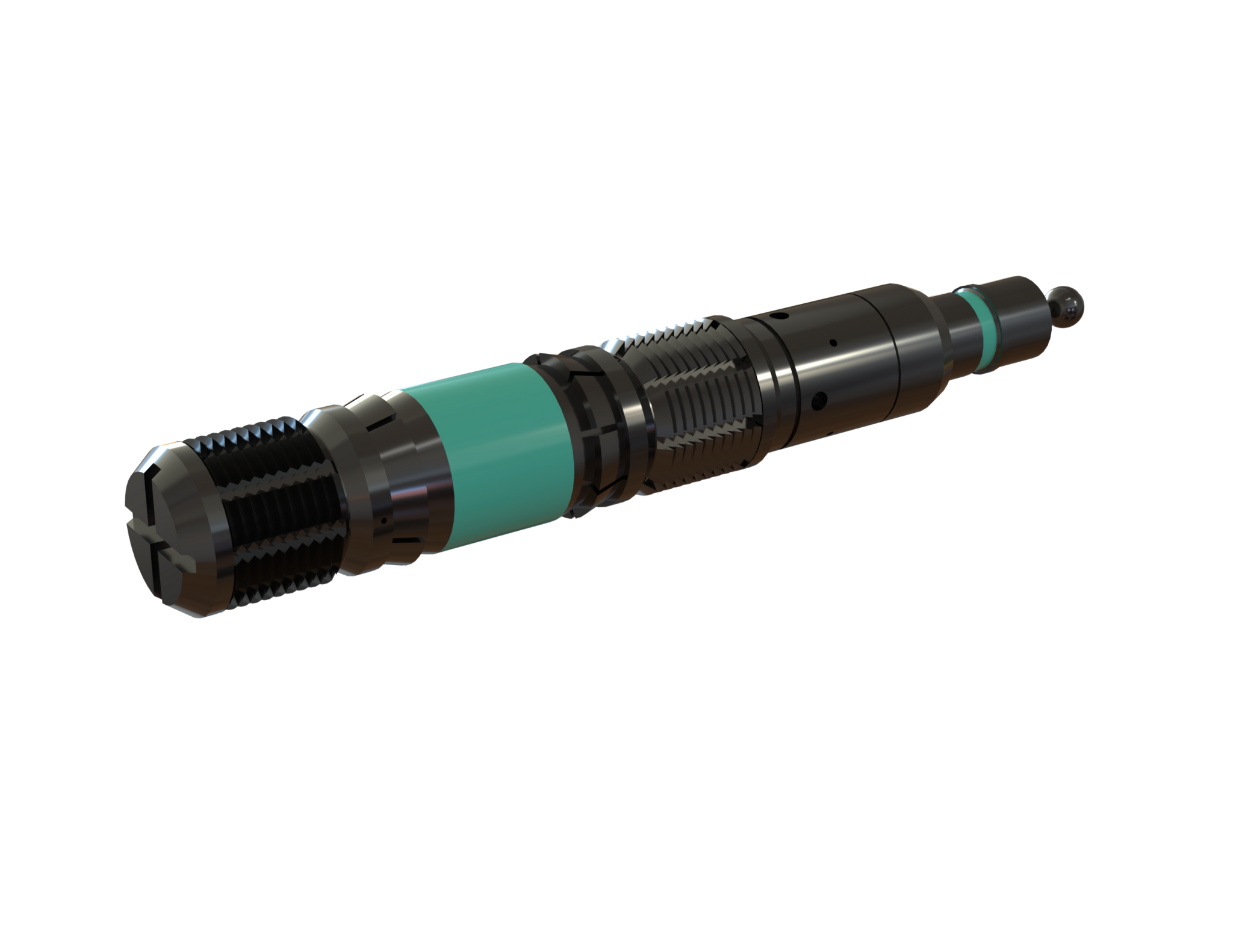

RHMBP HYDRO- MECH SET BRIDGE PLUGS

Name: RHMBP HYDRO- MECH SET BRIDGE PLUGS
Brand: RMEOIL
Availability: InStock

Description

The RHMBP Hydro-Mech Set Bridge Plug is designed for both temporary and permanent isolation of oil, gas, and water zones, with typical applications including reservoir compartmentalization, formation fracturing, and acidizing operations. This plug can be activated via ball drop and subsequent tubing lift, eliminating the need for specialized setting tools, and is compatible with casing sizes ranging from 4 1/4” to 20”.

Features

• Boasts a compact structure for streamlined deployment and can be emergency-released via right-hand tubing rotation for operational flexibility and safety.
• Integrates a one-piece packing element with rocker-action metal backup rings to deliver a superior sealing performance, ensuring reliable isolation across diverse well conditions.

Technical Information

Part number	Casing OD (in)	Casing Wt (lbs/ft)	Setting range Max(in)	Setting range Min(in)	Tool OD (in)	Pressure (Psi)	Release force (lbs)	Connection thread
RMHSBP41235900	4 1/2	9.5-16.6	3.826	3.59	3.59	10,000	33,000	2 3/8” EUE BOX
RMHSBP50039300	5	11.5-20.8	4.154	3.93	3.93
RMHSBP51243100	5 1/2	13-23	4.58	4.31	4.31
RMHSBP53447000	5 3/4	14-25.2	4.89	4.7	4.7
RMHSBP65853700	6 5/8	17-32	5.595	5.37	5.37		50,000	2 7/8” EUE BOX
RMHSBP70056800	7	23-35	5.938	5.68	5.68
RMHSBP70060000	7	17-23	6.336	6.00	6.00
RMHSBP75863100	7 5/8	20-39	6.625	6.31	6.31
RMHSBP85871200	8 5/8	24-49	7.31	7.12	7.12
RMHSBP95881200	9 5/8	29.3-58.5	8.435	8.12	8.12	8,000		3 1/2” IF BOX
RMHSBP103494300	10 3/4	32.7-60.7	9.66	9.43	9.43	5,000
RMHSBP1134104300	11 3/4	38-60	10.772	10.43	10.43	4,000
RMHSBP1338118800	13 3/8	48-84.5	12.175	11.88	11.88	3,000		4 1/2” IF BOX
RMHSBP1600141200	16	65-118	14.576	14.12	14.12	1,500
RMHSBP2000183700	20	94-133	18.73	18.37	18.37	1,500
