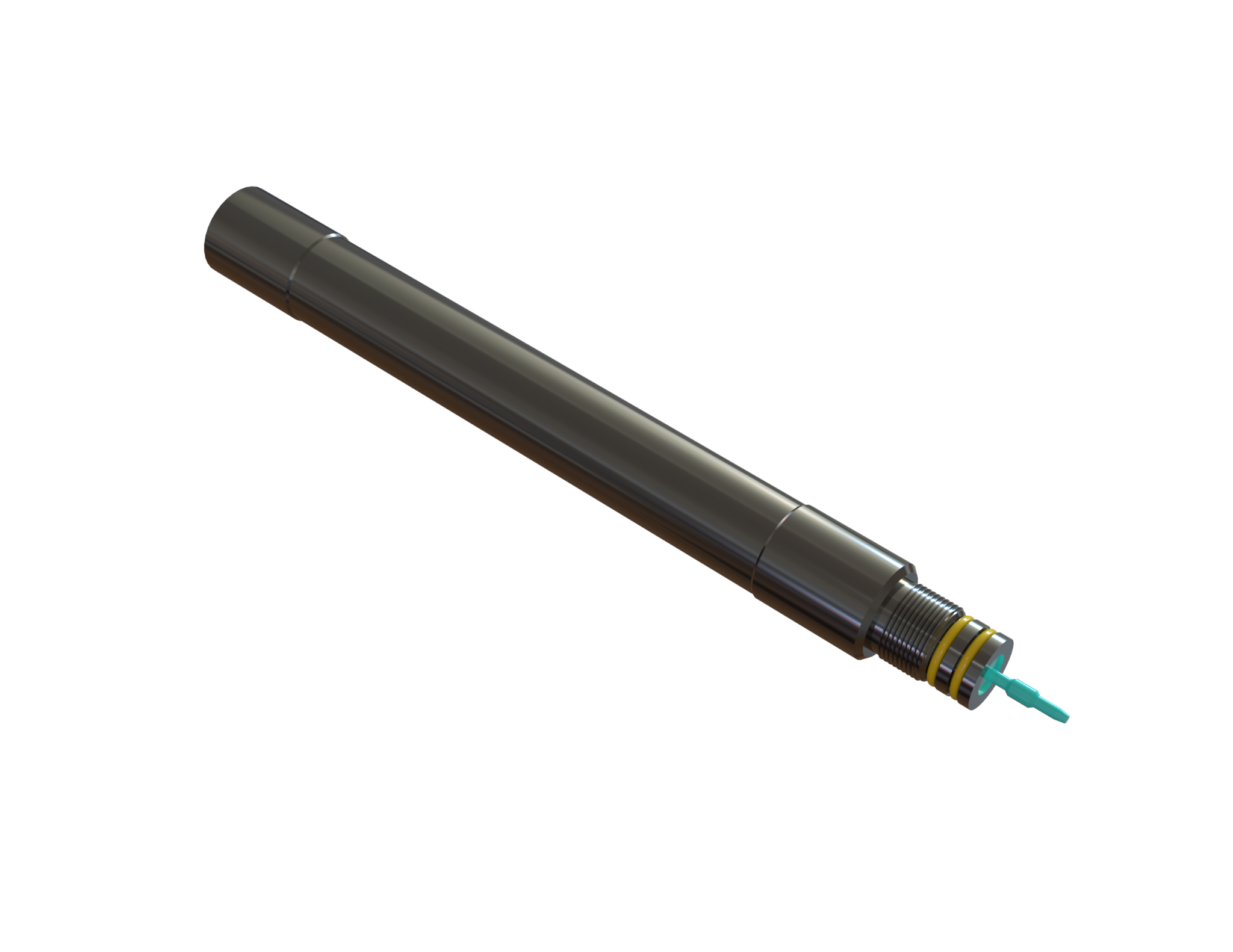

Sinker Bars
Description
Sinker Bars serve as the connecting component between the CCL (Casing Collar Locator) and the cable head assembly.
Features:
Constructed with a 4140-grade body, fitted with Viton-70 Durometer O-rings, and offers customizable connection threads to meet specific operational needs.
Technical Information
| O.D. in (mm) | Type | Part Number | Length ft (mm) | Weight lbm (kg) | Max Temp °F (°C) | Max Pressure psl (MPa) | Connection |
|---|---|---|---|---|---|---|---|
| 1 3/8in 35 | Steel | RMSB131635S5 | 5(1524) | 22(10) | 1 3/16-12 UN Pin | ||
| Tungsten | RMSB131635T5 | 38(17) | |||||
| 1 3/8in 35 | Steel | RMSB131635S7 | 7(2134) | 32(15) | 1 3/16-12 UN Pin | ||
| Tungsten | RMSB131635T7 | 54(25) | |||||
| 1 7/16in 37 | Steel | RMSB131637S5 | 5(1524) | 25(11) | 1 3/16-12 UN Pin | ||
| Tungsten | RMSB131637T5 | 40(18) | |||||
| 1 7/16in 37 | Steel | RMSB131637S7 | 7(2134) | 35(16) | 1 3/16-12 UN Pin | ||
| Tungsten | RMSB131637T7 | 57(26) | 400(204) | 20,000(138) | |||
| 1 11/16in 43 | Steel | RMSB131643S5 | 5(1524) | 35(16) | 1 3/16-12 UN Pin | ||
| Tungsten | RMSB131643T5 | 60(27) | |||||
| 1 11/16in 43 | Steel | RMSB131643S7 | 7(2134) | 49(22) | 1 3/16-12 UN Pin | ||
| Tungsten | RMSB131643T7 | 84(38) | |||||
| 2in 51 | Steel | RMSB131651S5 | 5(1524) | 50(23) | 1 3/16-12 UN Pin | ||
| Tungsten | RMSB131651T5 | 88(40) | |||||
| 2in 51 | Steel | RMSB131651S7 | 7(2134) | 70(32) | 1 3/16-12 UN Pin | ||
| Tungsten | RMSB131651T7 | 124(52) |
