Description

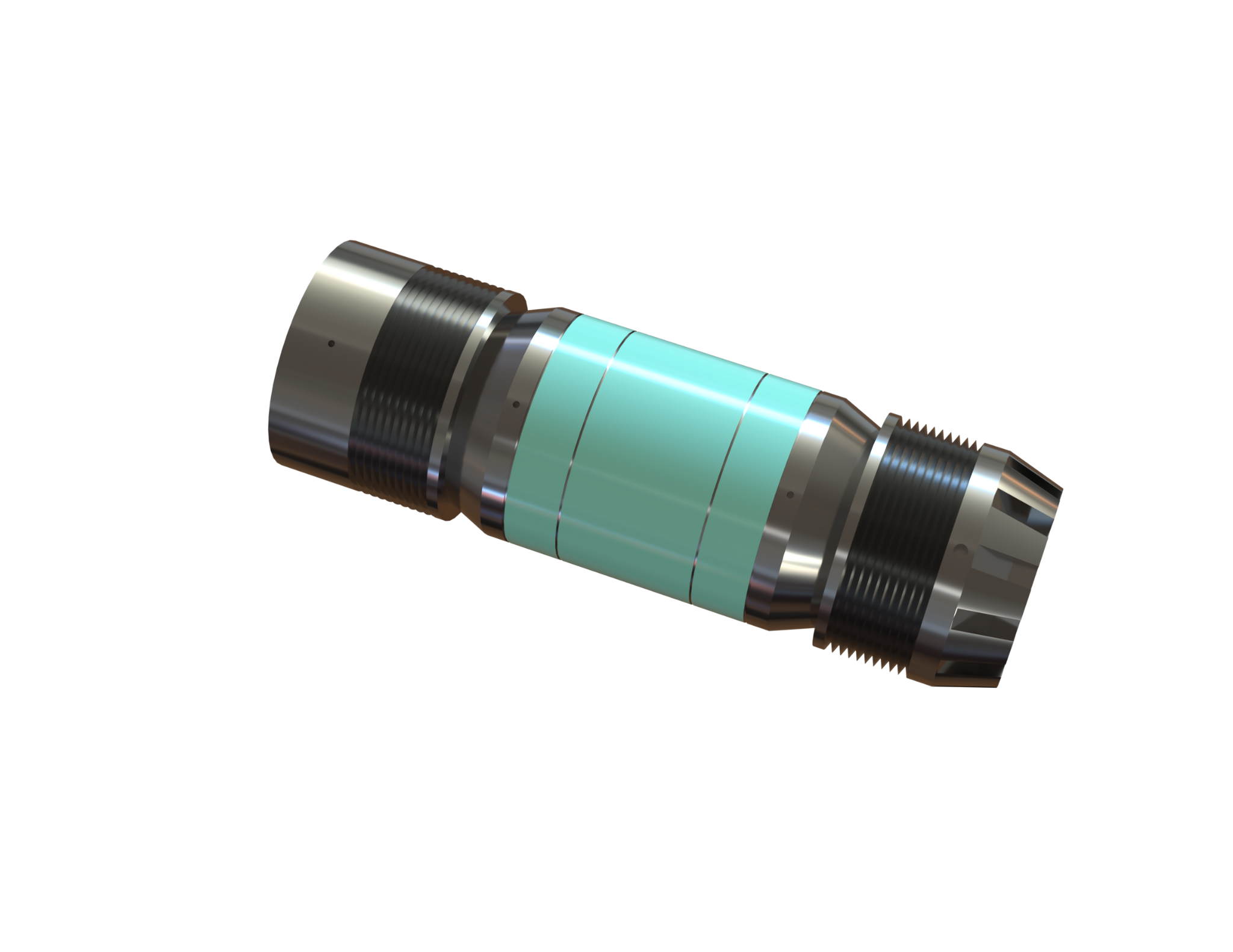

RWBP Wireline Set Bridge Plugs feature a compact profile and small outer diameter, while being engineered for straightforward drill-out after service. They can achieve secure setting in all casing grades except for the ultra-high tensile types, with a ratchet lock ring that retains the applied setting force for stable placement. A one-piece packing element paired with metal backup rings delivers a high-integrity seal, and the case-hardened, single-piece slips effectively prevent premature setting while remaining easy to drill through. The plugs are compatible with casing sizes spanning from 2 3/8” to 20”.

Features

• Enables direct deployment via Baker wireline setting tools, and can be run on Baker Setting Sleeves and Adjuster Subs without the need for crossover adapters, with Baker-style shear studs that connect directly to Baker Adjuster Subs
• Utilizes ratchet lock rings to lock in dynamic setting force for reliable downhole positioning
• Combines a one-piece packing element and rocker-action metal backup rings to form a superior seal for effective zone isolation
• Boasts easy mill-out capability for post-operation wellbore restoration and a compact, small-OD design for smooth running, with case-hardened one-piece slips that eliminate premature setting risks
