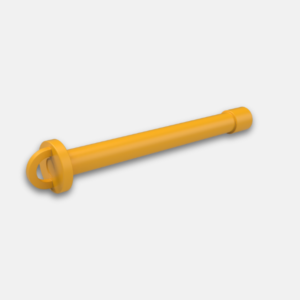

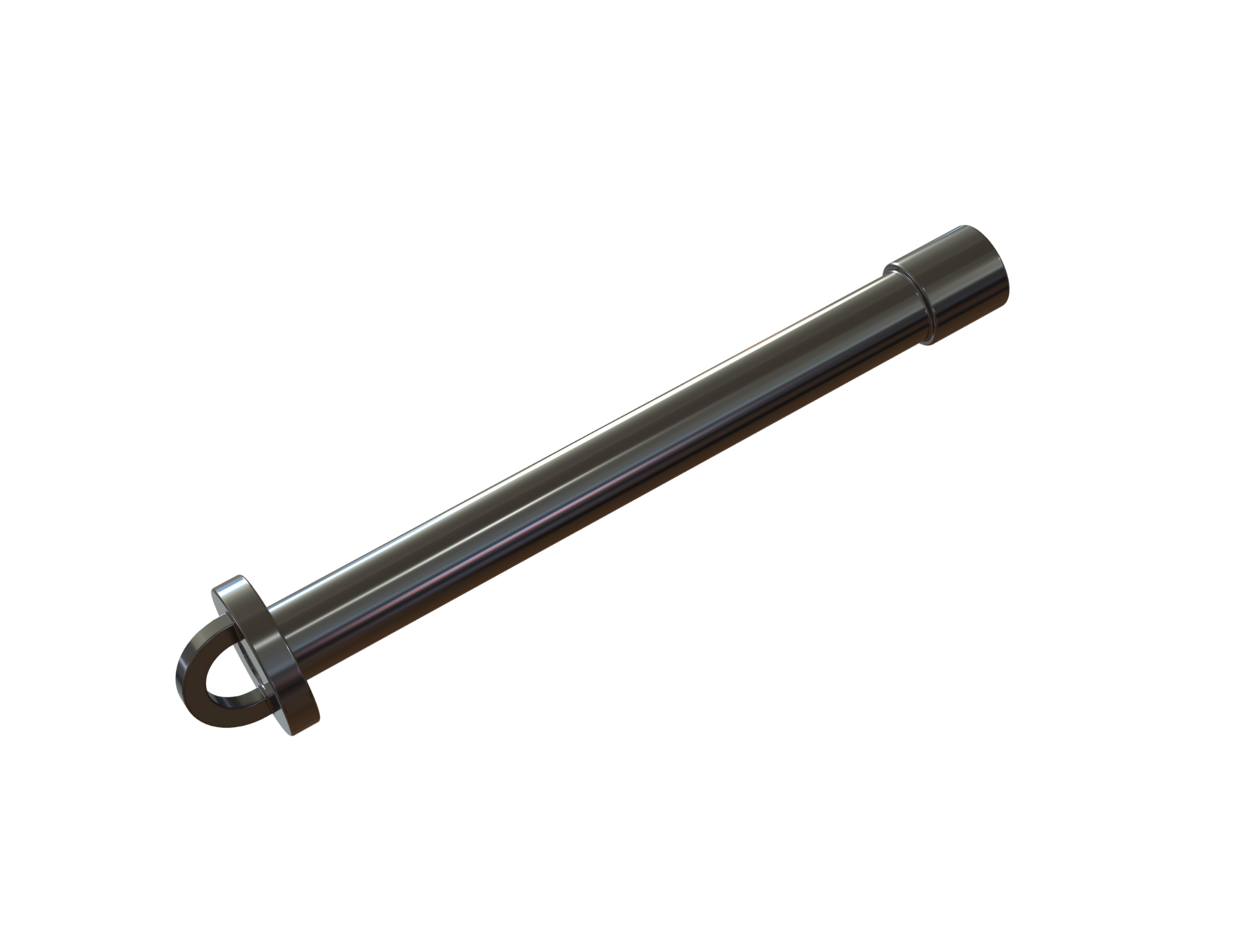

Lift Sub
Description
Engineered to handle and hoist perforating gun assemblies using rig elevators, tugger lines, or air hoists during connection makeup.
Recommendation:
Ensure the lifting eye is securely tightened and the connection to the gun system is fully made up.
Technical Information
| Sub O.D | Thread Type* | Part No | Typ |
|---|---|---|---|
| 2" | 1 11/16"-8 STUB ACME-2G | RMLS200111160 | Box |
| 2 7/8" | 2 3/8"-6Acme-2G | RMLS278203080 | Box |
| 3 1/8" | 2 3/4"-6Acme-2G | RMLS318203040 | Box |
| 3 3/8" | 2 13/16"-6Acme-2G | RMLS338213160 | Box |
| 4 1/2" | 3 15/16"-6Acme-2G | RMLS412315160 | Box |
| 7" | 6 1/4"-5Acme-2G | RMLS700601040 | Box |
