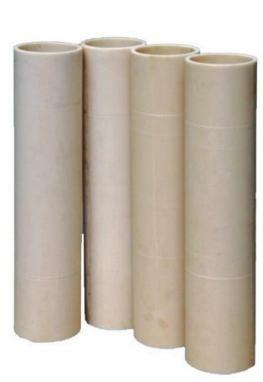

External Proppellent Sleeve

Name: External Proppellent Sleeve
Brand: RMEOIL
Availability: InStock

Description

External Propellant Sleeve

High-performance sleeve designed for extreme industrial and energetic environments.

* Temperature resistance: 180°C (48 hours)
* Low-temperature resistance: –40°C
* Pressure resistance: 100 MPa
* High corrosion resistance in well-fluid media
* Can be ignited by shaped-charge metal jets
* Does not burn continuously in open air after ignition
* Very low sensitivity to detonation, static electricity, and friction

Built for safety, durability, and reliable performance under high pressure and high temperature conditions.

Technical Information

From 1 Dimensions of external propellant sleeve:

Product Name	Product Code	I.D. (mm)	O.D. (mm)	Length (mm)	Applicable Gun Type	Unit Length Weight(Kg/m	Applicable Casing
73 External Propellant Sleeve	RMEPS73	φ 74.5	φ 86	500	73	2.42 ±0.04	5"
89 External Propellant Sleeve	RMEPS89	φ 90.5	φ 105	500	89	3. 62±0. 05	5. 5"
102 External Propellant Sleeve	RMEPS102	φ 103.5	φ 120. 5	500	02	4.84±0.08	7”
114 External Propellant Sleeve	RMEPS114	φ 115.5	φ 133.5	500	114	5. 69±0. 08	7"
127 External Propellant Sleeve	RMEPS127	φ 128.5	φ 146.5	500	127	6. 23±0. 1	7 5/8"
140 External Propellant Sleeve	RMEPS140	φ141.5	φ 158.5	500	140	6. 48±0.1	8",9 5/8"
