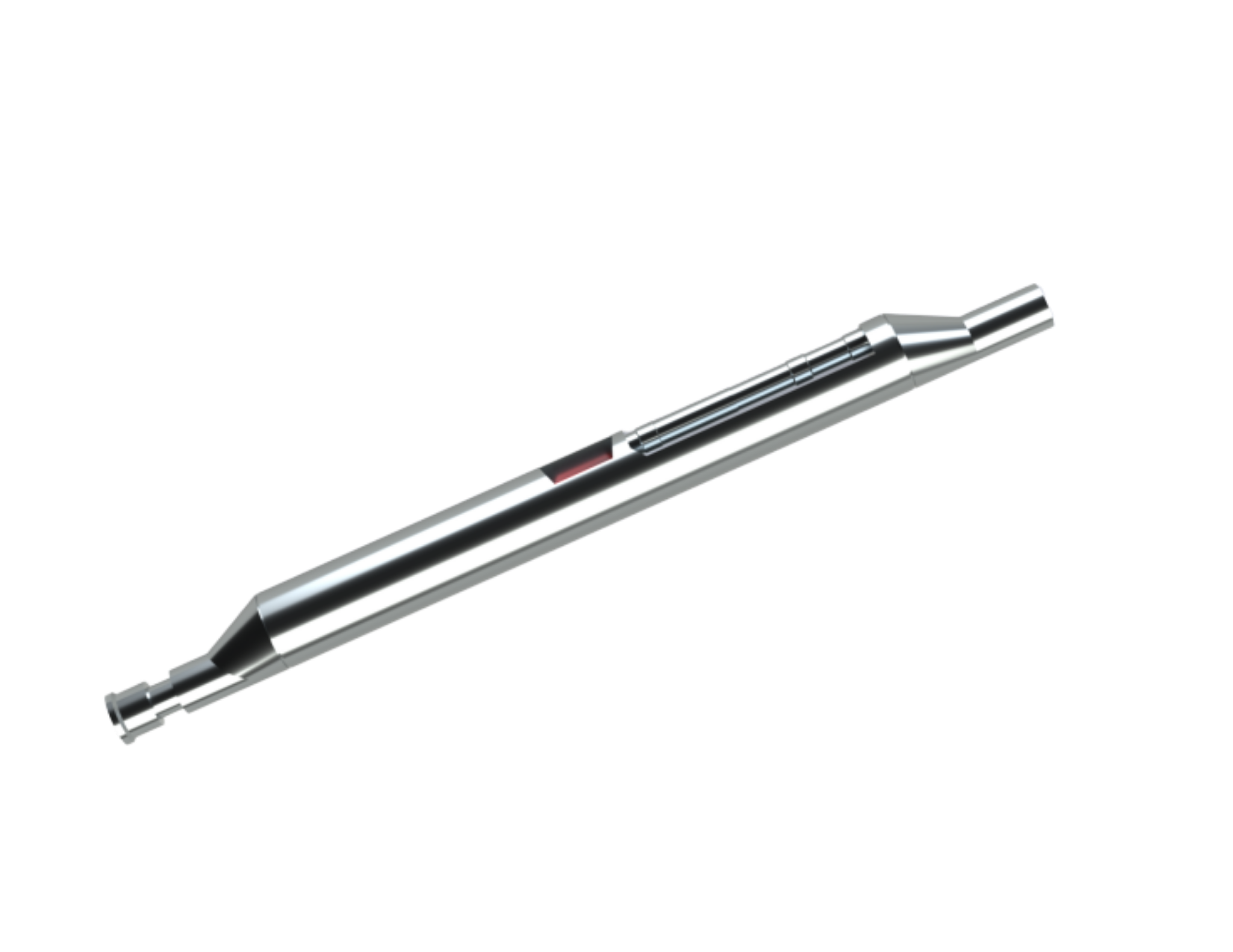

Side Pocket Mandrel

Name: Side Pocket Mandrel
Brand: RMEOIL
Availability: InStock

Description

Side Pocket Mandrels are engineered to accommodate 1” or 1-1/2” wireline-retrievable gas lift valves, while also enabling the deployment and recovery of various flow control devices via standard wireline tools.

Features

• Boasts an oval profile and integrated orienting sleeve, and is compatible with standard wireline tools for the installation and retrieval of a range of flow control devices
• Primarily fabricated from low-alloy AISI 4130 steel, with AISI 410 steel selected for corrosive operating conditions and custom material options available to fulfill specific client requirements

Technical Information

Side Pocket Mandrels for 1″ Gas Lift Valve SPECIFICATIONS

Part Number	Size (in)	Tool Type	Tool O.D. (in)	Tool I.D. (in)	Drift Dia (in)	Upper Sealing Bore (in)	Lower Sealing Bore (in)	Length (in)	Pressure (psi)	Thread
RMSPM23843301	2-3/8	OVAL	4.33	1.995	1.89	1.027	1.027	85.5	5000	2 3/8” EUE
RMSPM27847501	2-7/8		4.75	2.441	2.347			85		2 7/8” EUE
RMSPM31254701	3-1/2		5.47	2.992	2.867			85		2 7/8” EUE
RMSPM41263501	4-1/2		6.35	3.958	3.833			86		2 7/8” EUE

Technical Information

Side Pocket Mandrels for 1.5″ Gas Lift Valve SPECIFICATIONS

Part Number	Size (in)	Tool Type	Tool O.D. (in)	Tool I.D. (in)	Drift Dia (in)	Upper Sealing Bore (in)	Lower Sealing Bore (in)	Length (in)	Pressure (psi)	Thread
RMSPM23843302	2-3/8	OVAL	4.33	1.995	1.89	1.558	1.496	102	5000	2 3/8” EUE
RMSPM27847502	2-7/8		4.75	2.441	2.347			103		2 7/8” EUE
RMSPM31254702	3-1/2		5.47	2.992	2.867			111.5		2 7/8” EUE
RMSPM41263502	4-1/2		6.35	3.958	3.833			107		2 7/8” EUE
