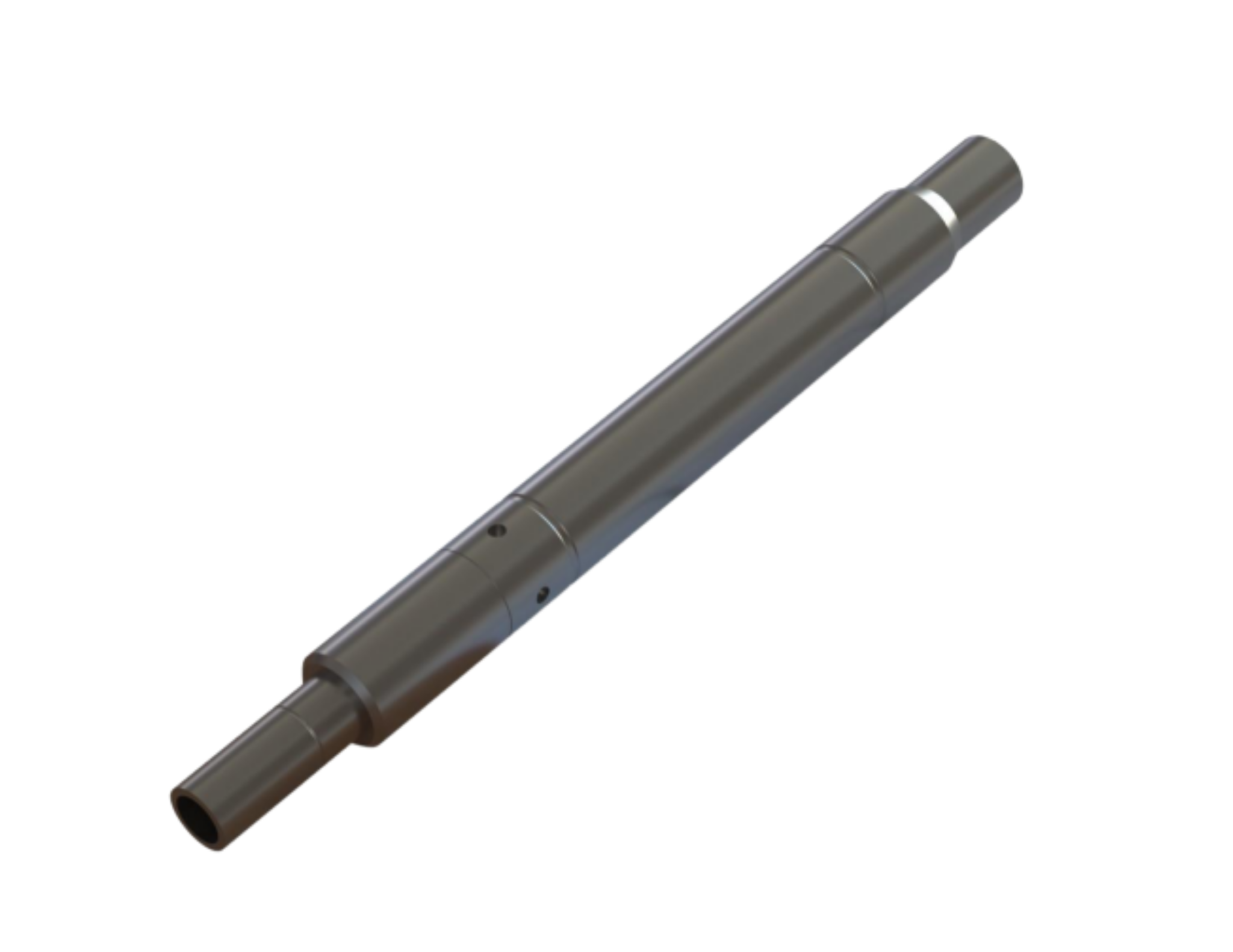

RT-Sub-Surface Safety Valve

Name: RT-Sub-Surface Safety Valve
Brand: RMEOIL
Availability: InStock

Description

The RT line of subsurface safety valves is a tubing-retrievable model that is hydraulically actuated from the surface via a dedicated control line. Integrated directly into the production tubing string as a core component of the operational work string, this valve is operated entirely by the hydraulic pressure within the control line post-installation. When a specified level of hydraulic pressure is supplied through the control line, the valve opens to enable flow; conversely, when pressure is relieved, the valve automatically closes, simultaneously isolating the entire tubing string.

Features

• Flapper assemblies come in two types—pressure-equalizing and non-pressure-equalizing—and the upper section is equipped with a locking and sealing structure for improved stability.
• The sealing chamber adopts a metal-to-metal sealing design for high reliability, and thread specifications for both upper and lower connections can be customized to meet customer needs.

Technical Information

Part Number	Specification (in)	Tool Type	Tool OD (in)	Sealbore ID (in)	Piston Volume cc	Pressure (Psi)	Depth (ft)	Temperature °F
RM3SV238363A0	2 3/8	RT(M)(E)	3.625	1.875	6.5	5000	1300	300
							2000
							3000
							4000
RM3SV238363B0		RT				7500	1000
							2000
							3000
RM3SV23835000		RT(M)(E)	3.5		5.4	9000	1300
							2000
							4000
RM3SV23836300			3.625		6.5	10000	1300
							2000
							4000
RM3SV27846300	2 7/8	RT(M)(E)	4.625	2.312	12.0	5000	1200
							2000
							3000
							4000
							6500
RM3SV27851400		RT(M)(E)	5.135		12.0	10000	1400
							2000
							3000
							4000

Part Number	Specification (in)	Tool Type	Tool OD (in)	Sealbore ID (in)	Piston Volume cc	Pressure (Psi)	Depth (ft)	Temperature °F
RM3SV31253800	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	400	300
	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	537	300
	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	1000	300
	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	1550	300
	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	2000	300
	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	3000	300
	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	4000	300
	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	4500	300
	3 1/2	RT(M)(E)	5.380	2.812	13.1	5000	5500	300
RM3SV31256500	3 1/2	RTS(M)(E)	5.650	2.812	10.0	10000	6000	300
RM3SV31256500	3 1/2	RTS(M)(E)	5.650	2.812	10.0	10000	9000	300
RM3SV412713A0	4 1/2	RT(E)	7.125	3.812	17.6	5000	820	300
	4 1/2	RT(E)	7.125	3.812	17.6	5000	1400	300
	4 1/2	RT(E)	7.125	3.812	17.6	5000	2000	300
	4 1/2	RT(E)	7.125	3.812	17.6	5000	3000	300
	4 1/2	RT(E)	7.125	3.812	17.6	5000	4000	300
	4 1/2	RT(E)	7.125	3.812	17.6	5000	4500	300
	4 1/2	RT(E)	7.125	3.812	17.6	5000	5500	300
RM3SV412713B0	4 1/2	RT(E)	7.125	3.812	17.6	7500	6000	300
RM3SV412713C0	4 1/2	RT(E)	7.125	3.812	17.6	8000	6000	300
RM3SV41275000	4 1/2	RT(M)(E)	7.5	3.812	20.9	10000	8700	300

Part Number	Specification (in)	Tool Type	Tool OD (in)	Sealbore ID (in)	Piston Volume cc	Pressure (Psi)	Depth (ft)	Temperature °F
RSTRS02550000	5 1/2	RT(E)	8.375	4.578	20.5	5000	1000	300
							2000
							3000
							4000
		RTM(E)			30		1400
							1850
							2100
							2500
							3000
							5500
							6185
RSTRS03550000						5500	1400
RSTRS02700000	7	RTSM(E)	9.2	6.000	38.5	5000	1200	300
							2000
							3100
							4000
							4400
							6530
RSTRS01700000						6000	2000
RSTRS01700000						6000	4000
RSTRS03700000						7500	2000
RSTRS03700000						7500	3100
RSTRS04700000			9.3			8000	1200
RSTRS04700000			9.3			8000	1200
