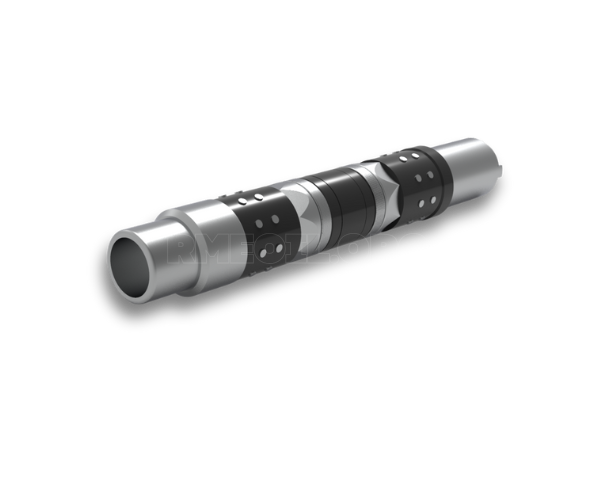

RCBP Composite Bridge Plug

Name: RCBP Composite Bridge Plug
Brand: RMEOIL
Availability: InStock

Description

RCBP Composite Bridge Plugs are designed for temporary or permanent isolation of oil, gas, and water-bearing zones, applicable in scenarios like interval segregation, formation fracturing, and acidizing treatments. Particularly suited for multi-zone fracturing operations, these easily drillable plugs stand out as an ideal solution for shale gas exploration projects. The product is available in three configurations: RCP-P (solid body), RCP-F (non-solid body), and RCP-D (non-solid cage-type body).

Features

• Supports direct deployment via RWSG/RWSB wireline or SHSG/RHSB hydraulic setting tools, and features a sloped bottom structure that prevents unwanted bridge plug rotation during operation
• Boasts easy mill-out capability for post-operation wellbore cleanup and is rated for service temperatures up to 150°C (300°F) for reliable performance in relevant downhole environments

Technical Information

Part Number	Model	Casing	Casing	Dimension			Setting range		Release Force	Pressure	Temp
		(in)	(lbs/ft)	OD(in)	ID(in)	Length(in)	Min(in)	Max(in)	lbs	Psi	°F
RMCBPP50039200	RCP-P (Solid body)	5	11.5~21	3.92	-	24.98	4.12	4.56	36,000	10k	300
RMCBPP51243600		5 1/2”	15.5~23	4.36	-	32.38	4.67	4.95	33,000	10k	300
RMCBPP70056300		7	23~35	5.63	-	35	5.938	6.366	55,000	10k	300
RMCBPF40031900	RCP-F (No-solid body,ball type)	4	5.6~14	3.19	0.75	26.33	3.32	3.548	26,000	10k	300
RMCBPF41236100		4 1/2”	9.5~15.1	3.61	0.75	22.68	3.826	4.09	26,000	10k	300
RMCBPF50039200		5	11.5~21	3.92	0.75	24.98	4.12	4.56	26,000	10k	300
RMCBPF51243600		5 1/2”	15.5~23	4.36	1	30.23	4.67	4.95	33,000	10k	300
RMCBPF70056300		7	23~38	5.63	1.5	38.53	5.92	6.366	55,000	10k	300
RMCBPD50039200	RCP-D(ca ge type)	5	11.5~21	3.92	0.75	26.76	4.12	4.56	35,000	10k	300
RMCBPD51243600	RCP-D(ca ge type)	5 1/2”	15.5~23	4.36	1	30.23	4.67	4.95	33,000	10k	300
