Body Material: 4140
O-ring Material: Viton–70 Durometer

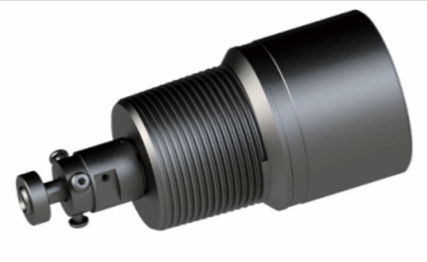

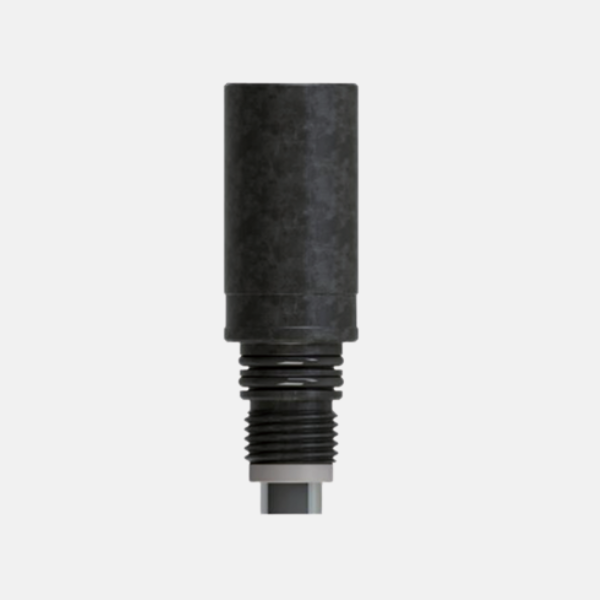

Mechanical Firing Head is used to activate tubing conveyed perforating systems. Firing Head is detonated by releasing a drop bar into the tubing from surface.
NOTE: Standard Drop Bars are used for wells up to 40° deviation. Deviations from 40° to 60° require a roller assisted bar to fire.
| Item | Description | ||
|---|---|---|---|
| Type | 2-3/8in (60.3mm) | 2-7/8in (73.0mm) | 3-1/2in (88.9mm) |
| Firing head assembly Part No. Include body & firing head | RAMFH01128000 | RAMFH01288000 | RAMFH01350000 |
| Body | RAFBD0108001 | RAFBD01093001 | RAFBD01114001 |
| Firing head | RADMF01093100 | RADMF01093100 | RADMF01093100 |
| O.D. MAX | 80mm | 93mm | 114.3mm |
| Overall Length | 528.5mm | 528.5mm | 528.5mm |
| Connection | Upper Thread | 2–3/8 EU PIN | 2–7/8 EU PIN |
| Lower Thread | 2 3/4–6ACME BOX | 2 3/4–6ACME BOX | |
| Max Temp | 200℃ | Max Temp | 200℃ |
| Detonator | DYNA/GEOD/Owen/SLB | Detonator | DYNA/GEOD/Owen/SLB |
| Max Pressure | 137.9MPa | Max Pressure | 137.9MPa |
