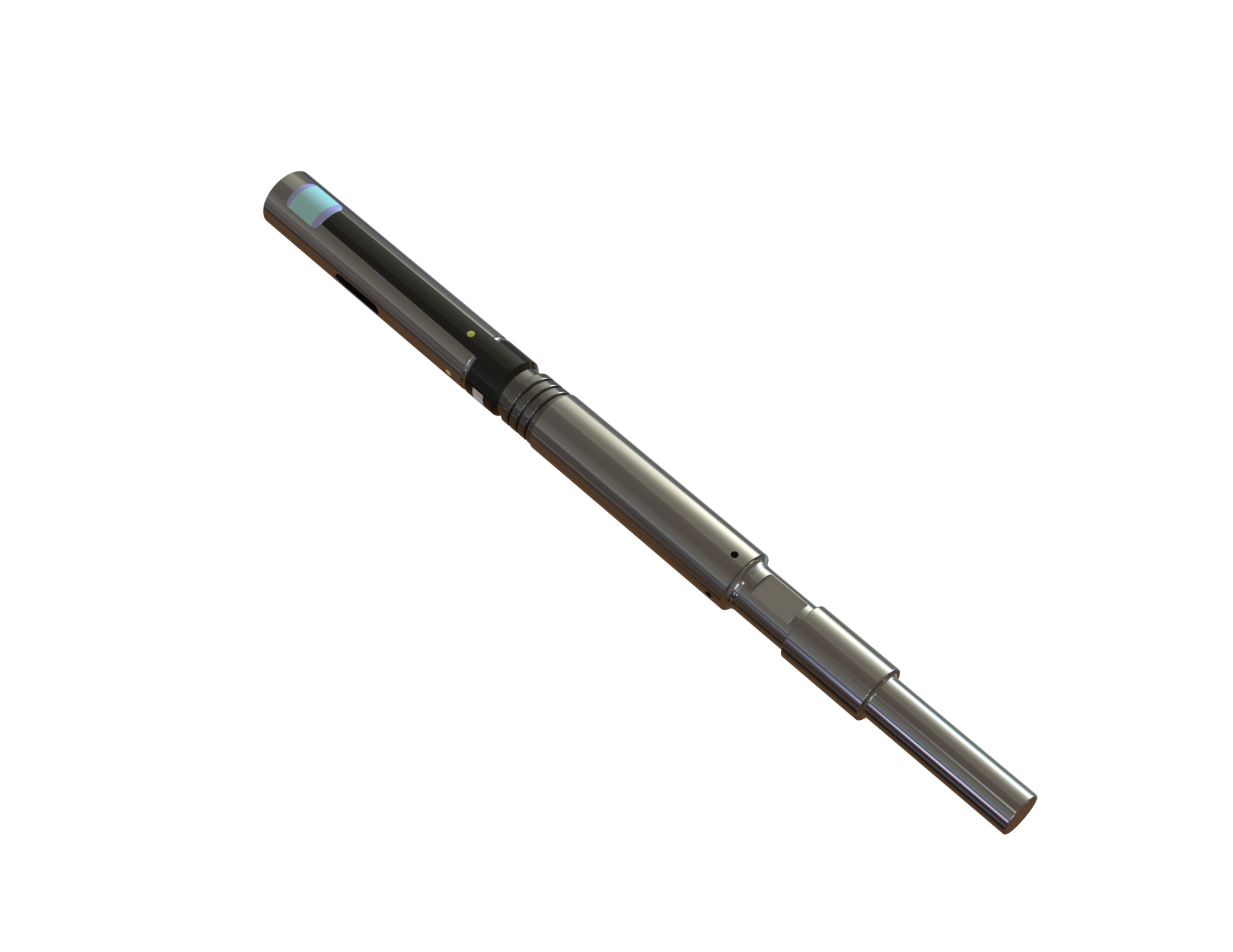

JD pulling tool is a fishing tool that can be used to running and pulling tools or instruments with external salvage necks (such as prong, plugs, pressure gauges, etc.). It can knock down and release your hand. It can be divided into JDC, JDS and JDL according to different grip distances.
| Item | Description | |||
|---|---|---|---|---|
| TYPE | 1″ | 1.5″ | 2″ | 2.5″ |
| Part No. | RWPJD01010000 | RWPJD01015000 | RWPJD01020000 | RWPJD01025000 |
| O.D. MAX | 1.422in | 1.422in | 1.86 in | 2.25 in |
| Connection Thread Type (TOP) | 15/16" -10UN | 15/16" -10UN | 15/16" -10UN | 15/16" -10UN |
| Fishing Neck Of The Tool | 1.187in | 1.187 in | 1.375 in | 1.375 in |
| To Fishing Neck（Bar） | 1in | 1.187 in | 1.375 in | 1.75 in |
| Reach | 35~40mm | 35~40mm | 35~40mm | 35~40mm |
