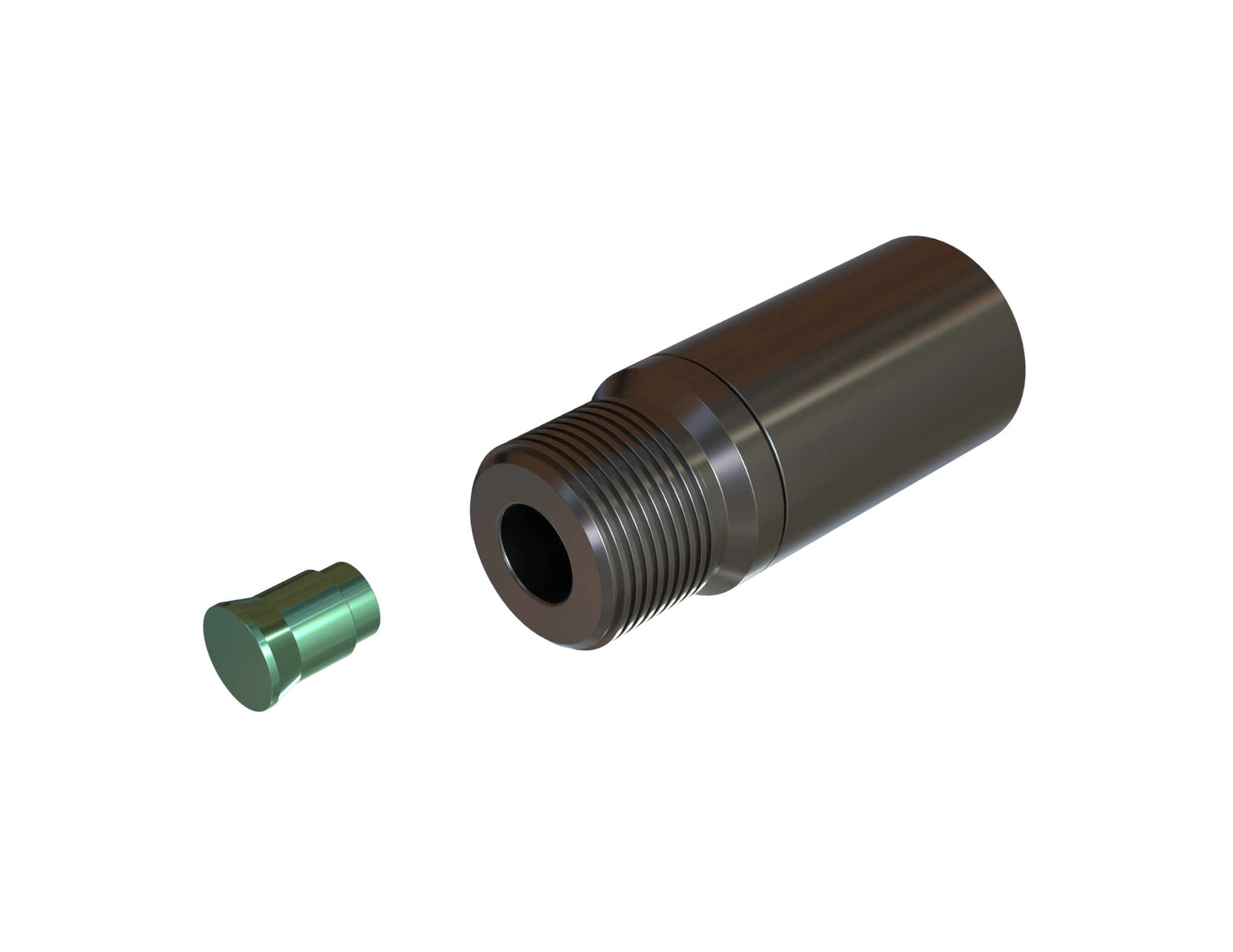

Firing Head Body
Description
This component securely houses the percussion initiator, links Drop Bar, Direct Pressure, and Safety Impact Mechanical Firing Heads to the perforating gun assembly, and serves as the primary connection point to the tubing string.
Features
Constructed from 4140 steel, the body is compatible with Direct Pressure, Mechanical, and Drop Bar Pressure-activated firing head assemblies.
Technical Information
| PN | Sub O.D | Thread Type* Upper | Thread Type* lower | Pressure Rating |
|---|---|---|---|---|
| RMFHB238312500 | 3.125in | 2 3/8 EUE PIN | 2 3/4-6 ACME-2G BOX | R25000 psi [172Mpa] |
| RMFHB278366100 | 3.66in | 2 7/8 EUE PIN | 2 3/4-6 ACME-2G BOX | 25000 psi [172Mpa] |
| RMFHB312450000 | 4.500in | 3 1/2 EUE PIN | 2 3/4-6 ACME-2G BOX | 25000 psi [172Mpa] |
