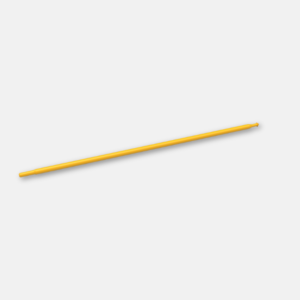

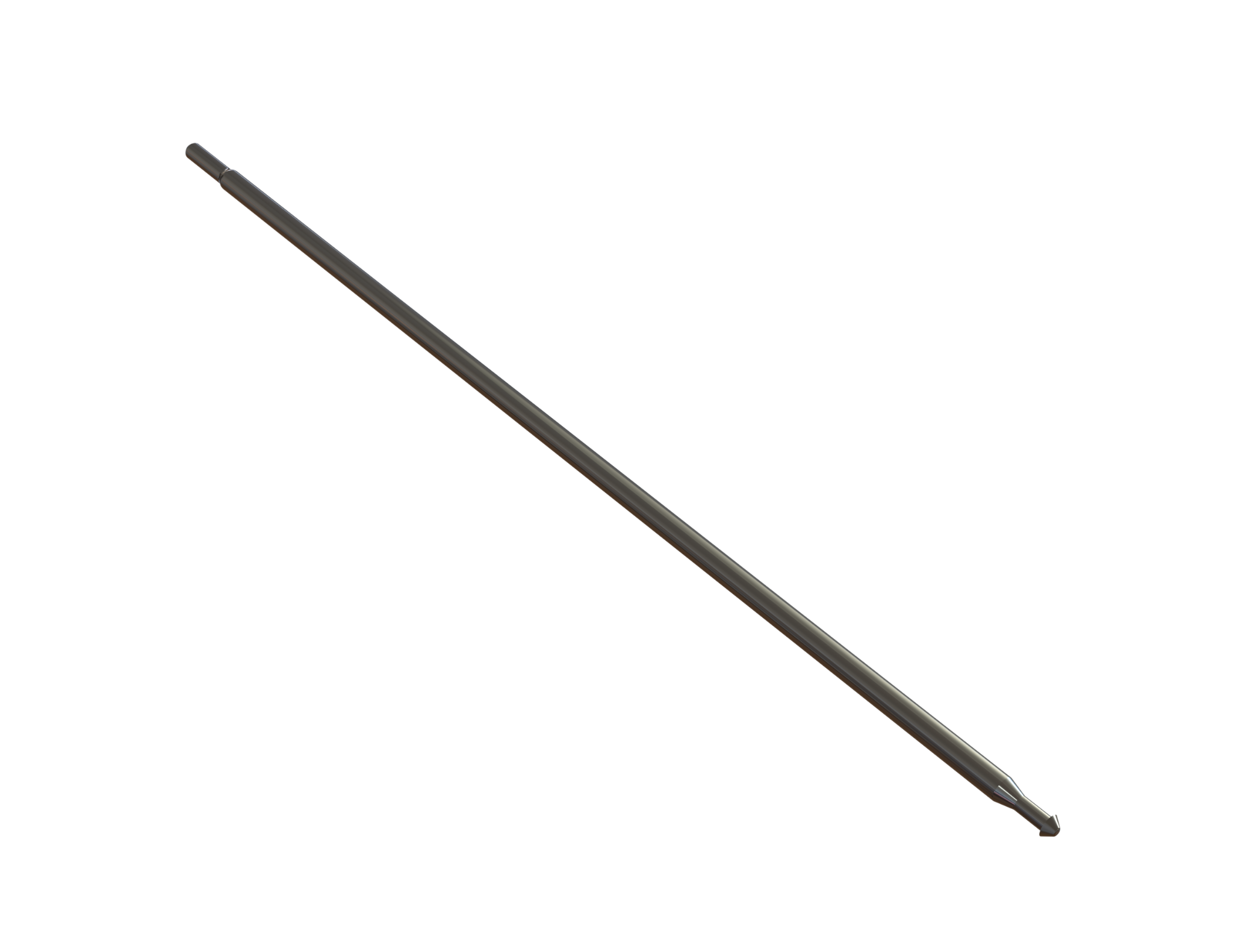

Drop Bar

(0)

Description:

Drop Bar is used in the TCP operation. It provides strike energy for the striking type firing heads such as safety impact firing head、sand control firing head and so on.

Features

  • Drop Bar is standard component. It is used with the striking type firing head;
  • It is equipped with  copper seal screw, displaying the striking situation;
  • It can be reused after the copper seal screw is changed.

Technical Parameters:

ItemDescription
Part No.RCDBX01032000RCDBX01033000RCDBX01038000RCDBX02032000RCDBX01046000RCDBX04032000
O.D. MAX32mm33mm38mm32mm46mm32mm
Fishing head diameter25.4mm25.4mm25.4mm25.4mm25.4mm25.4mm
Fishing neck diameter20mm20mm20mm20mm20mm20mm
Total Length1800mm1686mm1600mm3052mm2004mm1600mm
Weight10kg11kg13kg18kg23kg10kg
