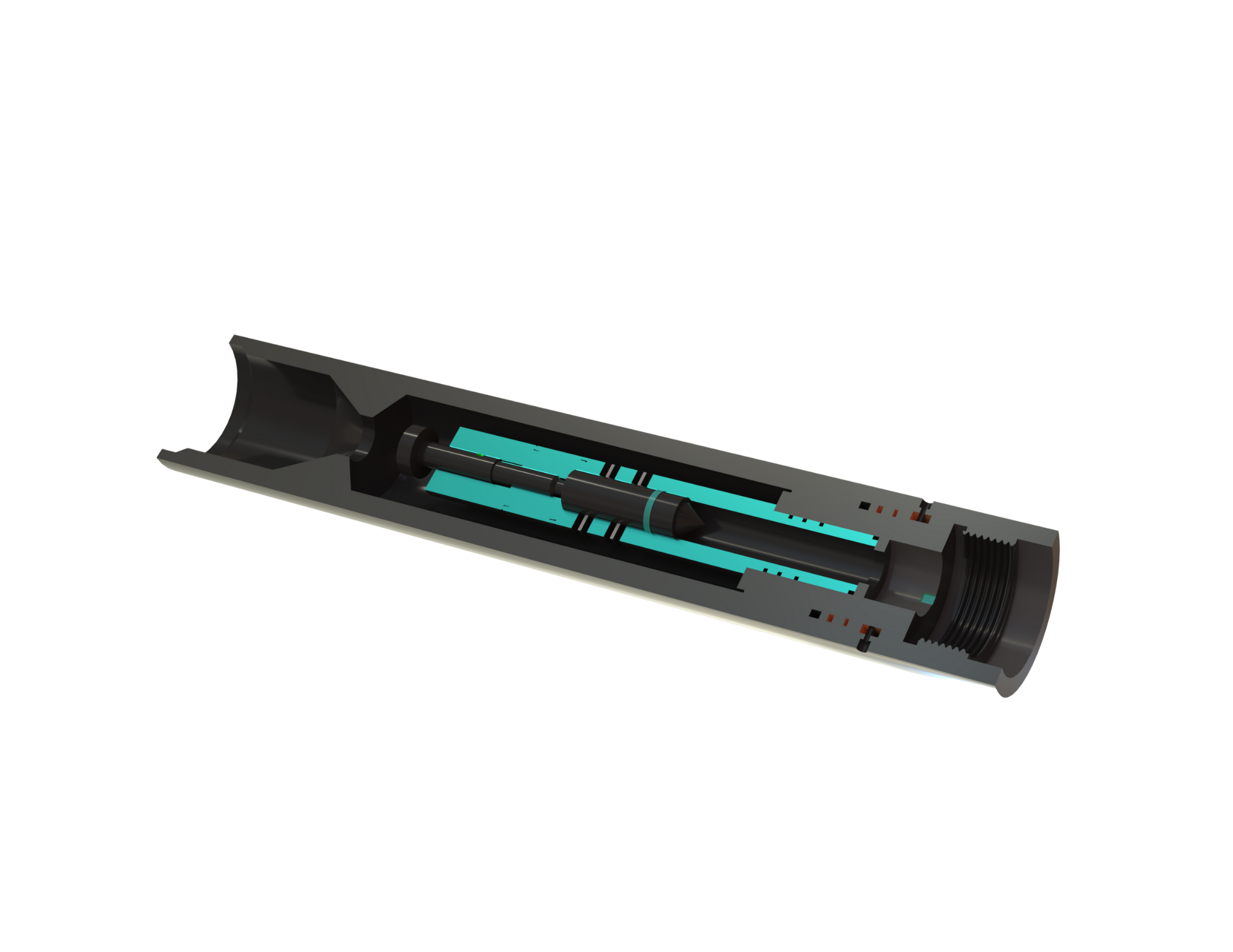

Double Firing Head
Description
A dual-activation firing head for TCP operations, featuring both drop bar impact and pressure-actuated triggering methods.
Features:
Constructed with a 4140 alloy structural steel body, Viton-70 durometer O-rings, and customizable connection threads.
Technical Information
| PN | RMDFH3669300 | ||
|---|---|---|---|
| OD. | Connection | Tool length | Makeup length |
| 93mm ( 3.66in) | 2-7/8EUE(B)×2-7/8-6Acme(B) | 627mm(24.7in) | 627mm(24.7in) |
| Qty of shear pins | Max.Hydrostatic | Min. Hydosatic(Bar Actuated) | Min shear force of shew pin |
| 24 | 90MP(13,000psi) | 3MP(450psi) | 0.38kg/m |
