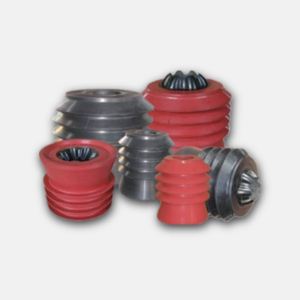

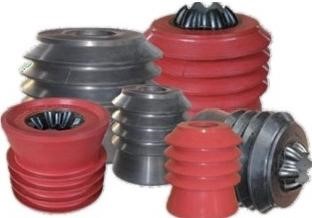

Cementing Plug

Name: Cementing Plug
Brand: RMEOIL
Availability: InStock

Material Formula:

Meet different hostile well conditions according to client’s requirement.
Wiping efficiency: design the fins to improve the wiping efficiency according to different well conditions.
The bottom plug is supplied with a rupture disk rated from 300 to 600 psi.(Smaller range is optional)

Technical Information

Model	Drawing No	Lip diameter	Main body diameter	Core diameter	Casing Size
2 7/8”	SF210-P019AB	2.68	1.73	1.46	ø1.87–ø2.05
3 1/2”	SF210-P001AB	3.27	2.13	1.77	ø2.44–ø2.68
4 1/2”S	SF210-P002AB	4.02	3.15	2.56	ø3.21–ø3.46
4 1/2”	SF210-P003AB	4.41	3.54	2.56	ø3.86–ø4.13
5”	SF210-P004AB	4.8	3.35	2.76	ø4.00–ø4.25
5 1/2”	SF210-P005AB	5.31	3.94	2.95	ø4.23–ø4.72
5 1/2”S	SF210-P006AB	5.71	4.33	2.95	ø4.62–ø4.12
6 5/8”	SF210-P007AB	6.38	4.72	3.15	ø5.10–ø5.61
7”	SF210-P008AB	6.77	5	4.49	ø5.61–ø6.24
7 5/8”	SF210-P009AB	7.48	5.71	4.72	ø6.22–ø6.67
8 5/8”	SF210-P010AB	8.27	6.3	5.31	ø7.33–ø7.70
9 5/8”	SF210-P011AB	9.25	7.52	6.46	ø7.97–ø8.48
10 3/4”	SF210-P012AB	10.24	8.27	7.09	ø8.80–ø9.37
10 3/4”S	SF210-P013AB	10.47	8.27	7.09	ø8.80–ø9.37
12 3/4”	SF210-P014AB	12.4	9.92	8.74	ø10.67–ø11.61
13 3/8”	SF210-P015AB	12.99	10.63	9.25	ø11.24–ø12.22
16”	SF210-P016AB	15.75	12.6	11.61	ø13.64–ø14.90
18 5/8”	SF210-P017AB	18.19	14.25	11.73	ø16.24–ø17.48
20”	SF210-P018AB	19.61	16.22	11.73	ø17.66–ø18.80
