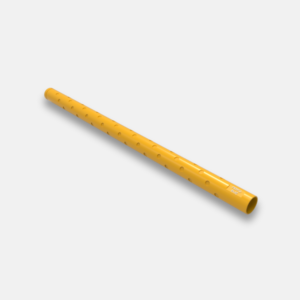

Gun Body Material: Heat treated, seamless steel tubing
Gun Body Configuration: Threaded and Scalloped
Charge Tube Type: Round steel tube
Type of Tandem Connection: Booster-to-booster
Initiation Point: Top or bottom fired options available for wireline and TCP
O-Ring Material: Nitrile-90 Durometer or Viton-95 Durometer
O-Ring Size for Threaded Gun: AS342-NBR-90-1 / AS234-FKM-95-1
Spacer Gun Kit: 114-D-SK-1
Booster Kit: BK-2-D-1
*Customization Acceptable*
| Specifications | |
|---|---|
| Phasing | 60° |
| Nominal O.D. | 4.5in [114.3mm] |
| Nominal Thickness | 0.375 in [9.5mm] |
| Drift Dia. | 3.68 in [93.6mm] |
| Pressure Rating | 20000 psi [137.9Mpa] |
| Gun End to First Scallop Distance | 7.2in [182.8mm] |
| Gun Swell at Liquid | 4.7in[120mm] |
| Max Tension | 453,000lbf [2,000kN] |
| Thread | 3 15/16"-6Acme-2G |
| Charge info | 19g: 2dp/ D92 / DP3 / DPEX / GH&2.3gB |
| Assembly Part No. | Carrier Part No, | Length | Shot Total | Assembly Weight |
|---|---|---|---|---|
| 114-5-60-04-22.7gDP2-GA-D | 114-5-60-04-22.7gDP2-G-GD | 4ft | 15 | 75.2lb[34.1kg] |
| 114-5-60-07-22.7gDP2-GA-D | 114-5-60-07-22.7gDP2-G-GD | 7ft | 30 | 120lb[54.5kg] |
| 114-5-60-11-22.7gDP2-GA-D | 114-5-60-11-22.7gDP2-G-GD | 11ft | 50 | 207lb[93.9kg] |
| 114-5-60-14-22.7gDP2-GA-D | 114-5-60-14-22.7gDP2-G-GD | 14ft | 65 | 263.5lb[119.5kg] |
| 114-5-60-21-22.7gDP2-GA-D | 114-5-60-21-22.7gDP2-G-GD | 21ft | 100 | 395.1lb[179.2kg] |
