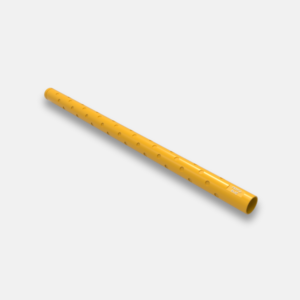

Gun Body Material: Heat treated, seamless steel tubing
Gun Body Configuration: Threaded & Scalloped
Charge Tube Type: Round Steel Tube
Type of Tandem Connection: Booster to Booster
Initiation Point: Top or bottom fired options available for wireline and TCP
O-ring Material：Nitrile-90 Durometer or Viton-95 Durometer
O-ring Size For Threaded Gun: AS221-NBR-90-1/ AS221 -FKM-95-1
Spacer Gun Kit: 86-D-SK-1
Booster Kit: BK-D-1
*Customization Acceptable*
| Specifications | |
|---|---|
| Phasing | 60° |
| Nominal O.D. | 3.375 in [85.725mm] |
| Nominal Thickness | 0.375 in [9.525mm] |
| Drift Dia. | 2.555 in [64.77mm] |
| Pressure Rating | 20000 psi [137.9Mpa] |
| Gun End to First Scallop Distance | 7in [177.8mm] |
| Gun Swell at Liquid | 3.57in[91mm] |
| Max Tension | 270,000lbf [1200kN] |
| Thread | 2 13/16"-6Acme-2G |
| Charge info | 26g DP / DPEX / GH |
| Assembly Part No. | Carrier Part No, | Length | Shot Total | Assembly Weight |
|---|---|---|---|---|
| 86-6-60-04-26dpD-GA-D | 86-6-60-04-26dpD-GA-D | 4ft | 18 | 53.8lb[24.4kg] |
| 86-6-60-07-26dpD-GA-D | 86-6-60-07-26dpD-GA-D | 7ft | 36 | 94.1lb[42.7kg] |
| 86-6-60-11-26dpD-GA-D | 86-6-60-11-26dpD-GA-D | 11ft | 60 | 148lb[67.1kg] |
| 86-6-60-14-26dpD-GA-D | 86-6-60-14-26dpD-GA-D | 14ft | 78 | 188lb[85.3kg] |
| 86-6-60-21-26dpD-GA-D | 86-6-60-21-26dpD-GA-D | 21ft | 120 | 282.2lb[128kg] |
