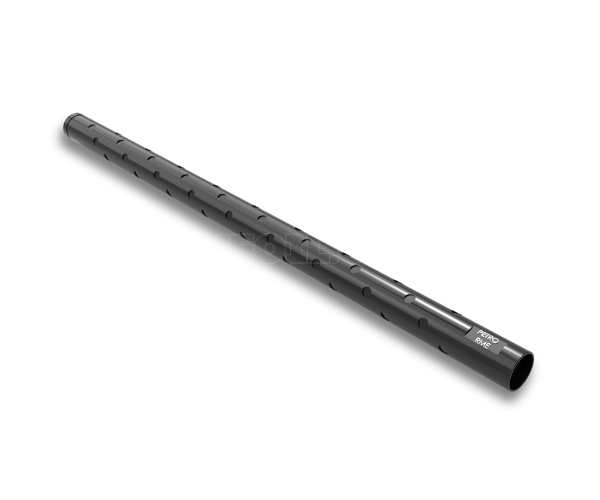

1 9/16in [40mm ] Scalloped Hollow Carrier Gun 6spf [20spm]

1 9/16in [40mm ] scalloped hollow carrier gun gspf [20spm1

1 9/16in [40mm ] Scalloped Hollow Carrier Gun 6spf [20spm]

Description

Gun Body Material: Heat treated, seamless steel tubing
Gun Body Configuration: Threaded and scalloped
Charge Tube Type: Round steel tube
Type of Tandem connection: Booster-to-booster
Initiation Point: Top or bottom fired options available for wireline and TCP
0-Ring Material: Nitrile-90 Durometer or Viton-95 Durometer
0-Ring Size for Threaded Gun: AS215
Spacer Gun Kit: 40-O-SK-1
Booster Kit: BK-O-1

*Accept customization

Technical Parameters

Specifications
Phasing60°
Nominal O.D.1.56in (39.7mm)
Nominal Thickness0.175in (4.445mm )
Drift Dia.1.19in (30.2mm)
Pressure Rating22000psi(151.7Mpa)
Gun End to First scallop Distance5.0in(127mm)
Gun swell at Liquid1.69in
Max Tension80000LBS
Thread1 9/32in -12STUB ACME-2G
Charge info3.6g DP

Assembly Part No.Carrier Part No.LengthShot TotalAssembly Weight
40-6-60-04-3.6gDP-GA-O40-6-60-04-3.6gDP-G-O4ft1812.3lb[5.6kg]
40-6-60-07-3.6gDP-GA-O40-6-60-07-3.6gDP-G-O7ft3622.5lb[10.2kg]
40-6-60-11-3.6gDP-GA-O40-6-60-11-3.6gDP-G-O11ft6035.9lb[16.3kg]
40-6-60-14-3.6gDP-GA-O40-6-60-14-3.6gDP-G-O14ft7845.8lb[20.8kg]
40-6-60-21-3.6gDP-GA-O40-6-60-21-3.6gDP-G-O21ft12064.4lb[31.5kg]
